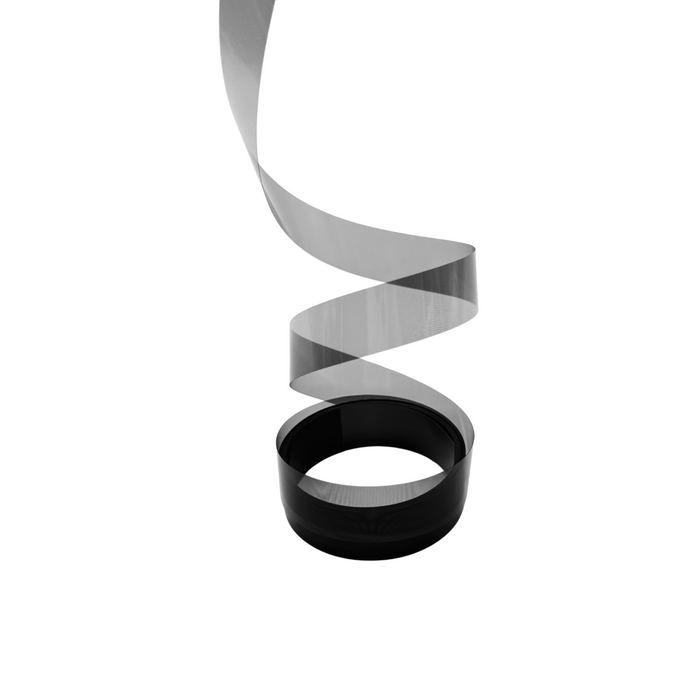

Encoder Strip: Precision Measurement for Motion Control

An Encoder Strip is a key component in motion control systems. It measures the position, speed, and direction of moving objects. It works with an encoder sensor, providing a reliable solution for tracking motion in robotics, CNC machines, 3D printers, and industrial automation systems.

What is an Encoder Strip?

An Encoder Strip is a flexible tape or ribbon, often made of metal or plastic. It has patterns or markings that an encoder sensor reads. These patterns (optical or magnetic) allow the sensor to detect movement and give precise position feedback. Encoder strips are used for linear displacement or rotational feedback in motion systems.

Key Features of an Encoder Strip:

• High Precision: Offers accurate measurement of position, velocity, and direction, crucial for CNC and robotics.

• Flexible Design: Made from flexible materials for easy integration into various systems.

• Durable Construction: Built to withstand harsh environments, offering long-term durability.

• Easy to Install: Can be installed on a linear axis or rotating system for motion tracking.

• Compatible with Optical and Magnetic Encoders: Works with both types, providing versatility.

Benefits of Using an Encoder Strip

Using an encoder strip in a motion system offers several benefits:

• Accurate Positioning: Tracks linear or rotational motion precisely, ideal for fine control applications.

• Versatility: Suitable for various applications, from robotics to large industrial machines.

• Reduced Mechanical Wear: No direct contact with moving parts, reducing wear and extending system life.

• High-Speed Performance: Works well in fast-moving systems, ensuring precise motion control.

• Cost-Effective: Compared to mechanical systems, encoder strips are affordable yet high-performing.

Applications of Encoder Strips

Encoder strips are used in:

• CNC Machines: For precise movement feedback during milling, turning, and machining.

• Robotics: Tracks the position of robotic arms, conveyors, and systems.

• 3D Printers: Ensures precise motion for high-quality prints.

• Industrial Automation: Monitors equipment movement in automated assembly lines.

• Automated Inspection Systems: Provides movement feedback for quality control processes.

Where to Buy Encoder Strips

You can purchase encoder strips from specialized electronics or automation suppliers. Make sure to select the right type (optical or magnetic), material, and dimensions for your system.

Conclusion

The Motion Encoder Tape is essential for accurate motion control across many industries. Its flexibility, durability, and precision make it perfect for systems requiring precise position, speed, and direction feedback. Whether in robotics, industrial automation, or CNC machining, the encoder strip provides reliable and accurate performance.

What is Motion Encoder Tape?

Motion Encoder Tape is a flexible tape or ribbon that is used in motion control systems to measure position, speed, and direction. It works in conjunction with an encoder sensor to provide accurate feedback on the movement of objects.

How does Motion Encoder Tape work?

Motion Encoder Tape features patterns or markings (optical or magnetic) that are detected by an encoder sensor. The sensor reads these patterns as the tape moves, providing precise data about the position and movement of an object.

What materials are Motion Encoder Tapes made from?

Motion Encoder Tapes are typically made from durable, flexible materials such as plastic, metal, or a combination of both. The material choice depends on the specific application and environmental conditions.

Can Motion Encoder Tape be used in high-speed systems?

Yes, Motion Encoder Tape is designed to operate effectively at high speeds, making it suitable for fast-moving applications such as robotics, CNC machines, and automated systems.

What are the benefits of using Motion Encoder Tape?

Motion Encoder Tape offers several benefits including high precision, versatility, reduced mechanical wear, and cost-effectiveness. It provides accurate position tracking without the need for direct mechanical contact, reducing the wear and tear on system components.

Is Motion Encoder Tape easy to install?

Yes, Motion Encoder Tape is typically easy to install. It can be mounted along a linear axis or attached to a rotating system, depending on the application. Installation is straightforward, and the tape is compatible with a variety of encoder systems.

Can Motion Encoder Tape be used with both optical and magnetic encoder systems?

Yes, Motion Encoder Tape is compatible with both optical and magnetic encoder systems. This versatility makes it suitable for a wide range of motion control applications.

What applications use Motion Encoder Tape?

Motion Encoder Tape is used in applications such as CNC machines, robotics, 3D printers, industrial automation, and automated inspection systems. It provides precise motion feedback for accurate positioning and movement control.

Where can I purchase Motion Encoder Tape?

Motion Encoder Tape can be purchased from specialized electronics or automation equipment suppliers. It is important to choose the right tape based on the type of encoder system (optical or magnetic) and the specific requirements of your application.
